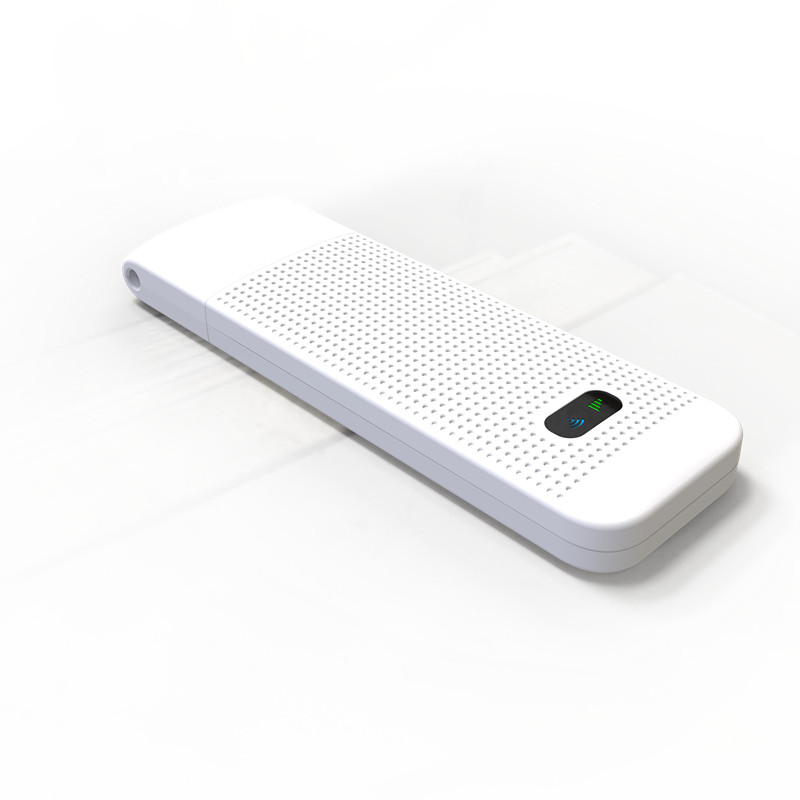

Multi Mode 4G LTE WIFI USB Dongle 150 Mbps Compliant With 3GPP Release 9

Brand Name : SY

Model Number : GW243

Certification : FCC/CE/ROSH

Place of Origin : China

MOQ : 1

Price : US$20-US$25/PC

Payment Terms : L/C, T/T, Western Union

Supply Ability : 3000 pieces per week

Delivery Time : 5-8 working days

Packaging Details : Standard color box or customized design color box packaging

Antenna : 2 x External Antenna

Button : WPS/Reset Button

Data Rate : 150 Mbps

Frequency Band : 2.4GHz

Interface : 1 x 10/100Mbps WAN/LAN Port, 1 x USB 2.0 Port

LED Indicator : Power, WAN, LAN, WLAN, Signal Strength

Network Standard : 4G LTE

Operating Temperature : 0℃~40℃

Power Supply : DC 12V/1A

Product Name : Commercial 4G Router

Security : WPA-PSK/WPA2-PSK, WPA/WPA2

Storage Temperature : -40℃~70℃

Wi-Fi Standard : 802.11 b/g/n

Contact Now

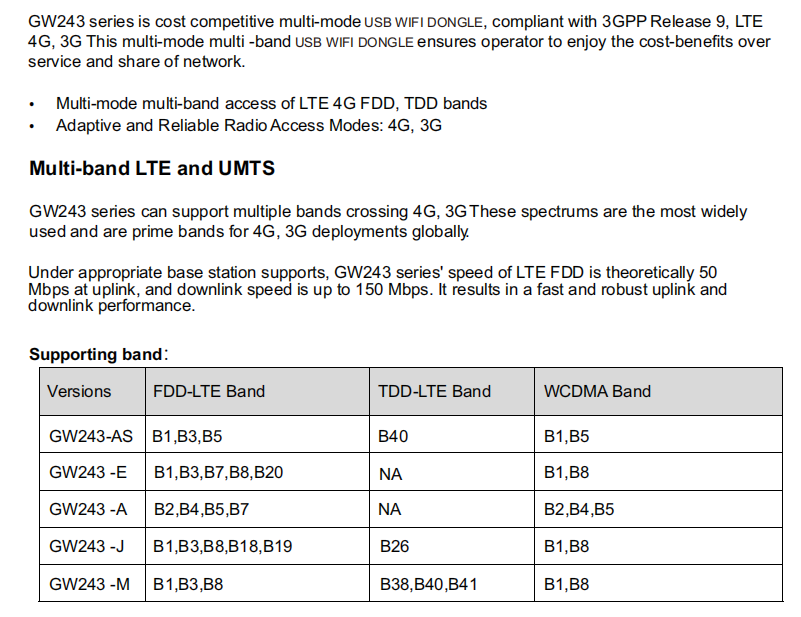

Cost Competitive Multi-mode USB Wifi Dongle, Compliant with 3GPP Release 9


Multi Mode 4G LTE WIFI USB Dongle 150 Mbps Compliant With 3GPP Release 9Multi Mode 4G LTE WIFI USB Dongle 150 Mbps Compliant With 3GPP Release 9
Hardware Specifications
Feature Description Comments
CPU ZX297520V3
Standard 3GPP Release 9
UE Category CAT.4
Wi-Fi 2.4 GHz 802.11 b/g/n compliant
LED Indicators Wi-Fi/Signa
SIM 4FF USIM support 1.8V / 3.0V
Power Supply
USB input: 5v-1a,
electric power 2W
Optional.
Extra cost required

ID Specifications
Dimension
88*28*12.3mm
Weight
25g

RF Specifications
Feature
Capability
Comments
Min Typ Max Unit
LTE Max Transmit Power 22 dBm Compliant with 3GPP with margin
LTE Receiver Sensitivity (FDD) -93 dBm Compliant with 3GPP with margin
LTE Antenna Support
Frequency
 703 2690 MHZ
Wi-Fi Channel @ 2.4GHz
Ch 1~13
2.4GHz
Wi-Fi Channel BW
20/40
 MHZ
Wi-Fi Power level 14 dBm 11b
13 dBm 11g
11 dBm 11n
Wi-Fi Sensitivity 11n
≤- 69
 dBm

EMC Specifications
Feature Standard Capability Comments
Immunity to ESD EN 61000 -4-2 Compliant Air +/8 KV; Contact +/-4KV
Immunity to burst EN 61000 -4-4 Compliant L/N/L-N+/-1KV
Immunity to surge EN 61000 -4-5 Compliant L-N+/-1KV
Immunity to Conducted
RF disturbances		 EN 61000 -4-6 Compliant 0.15-80 MHz
Immunity to Voltage Dips
and short interruption		 EN 61000 -4-11 Compliant
Harmonic current emissions EN 61000 -3-2 Compliant
Voltage fluctuations and
flicker		 EN 61000 -3-3 Compliant
Conducted emission test,
class-B		 EN 55022 Compliant 0.15-30 MHz

Multi Mode 4G LTE WIFI USB Dongle 150 Mbps Compliant With 3GPP Release 9

Environmental Specifications:
Operating temperatur: 0 ~ 40℃
Storage temperature: -20 ~ 45℃
Operating humidity: 10 ~ 85%
Storage humidity: 10 ~ 85%
